Why simulation?

gem5 might be your first time exploring hardware simulation (if that’s true, don’t worry! You’re going to be alright). Naturally, you might be wondering why researchers want to simulate hardware at all.

By the end of this section, you will be able to:

• Explain why simulation is a useful tool for computer architecture research.
• Define functional, instrumentation-based, trace-based, execution-driven, and full-system simulation.

Computer architecture research

Computer architecture research focuses on innovative ways of building processors. There are many avenues of research to explore:

Processors

• How many cores to use?
• Should they be all the same?
• Can we instrument the hardware to do more complex functions?
• Can we accelerate certain operations?

Caches and memory

• Which technology to use?
• How should the cache architecture look like?
• How about the cache hierarchy?

Overall system

• How should cores communicate?
• What should the network architecture look like?
• Should chips be able to share data? If so, how?
• How about consistency and coherence?

…and a bunch of others.

Problem: what you’re making doesn’t exist yet

What all of the above research opportunities have in common is that the system being evaluated is one that no one has built before. This is made worse by the fact that individual hardware components (for example, a specific cache hierarchy or a new memory unit) cannot be tested in isolation; they are likely dependent on other parts of the computer system, which means you have to build that entire system.

Solution: simulation

Faced with this problem, you have two choices: build the hardware yourself or simulate it. Building custom hardware for research is very expensive. Simulation is not! In addition, simulation is parameterized. This means that you can explore your design space more thoroughly and perform sensitivity analysis by adjusting simulation parameters, no soldering required. While it’s not the same as actually observing real hardware, it’s very often accurate enough.

Simulation terminology

We use specific terminology to talk about simulators. This terminology mirrors the language we use to talk about virtual machines.

If you’re not familiar with virtual machines, that’s okay! Virtual machines are pieces of software that mimic a full computer system. Being software, they need to run on an actual machine, but they might simulate an entirely different operating system than that machine’s operating system.

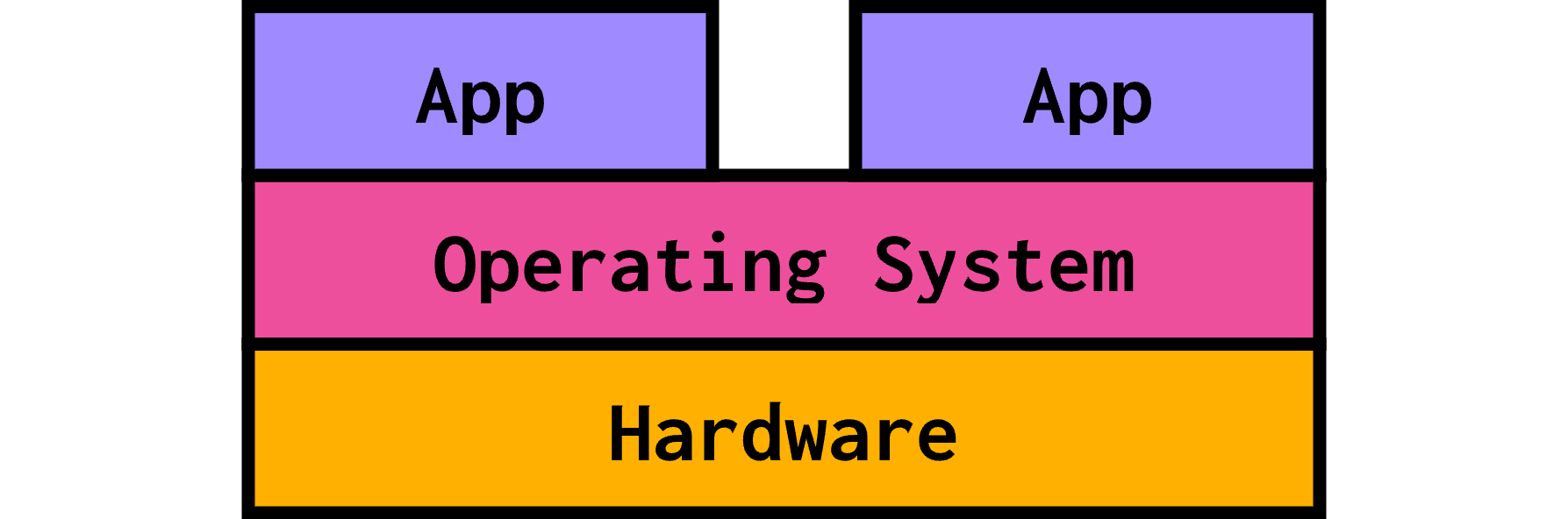

Without virtual machines, we can think of the way your computer runs code like a “layer cake” of sorts:

We call this native execution: your native operating system runs on your machine’s hardware directly and allows your favorite apps to run on top.

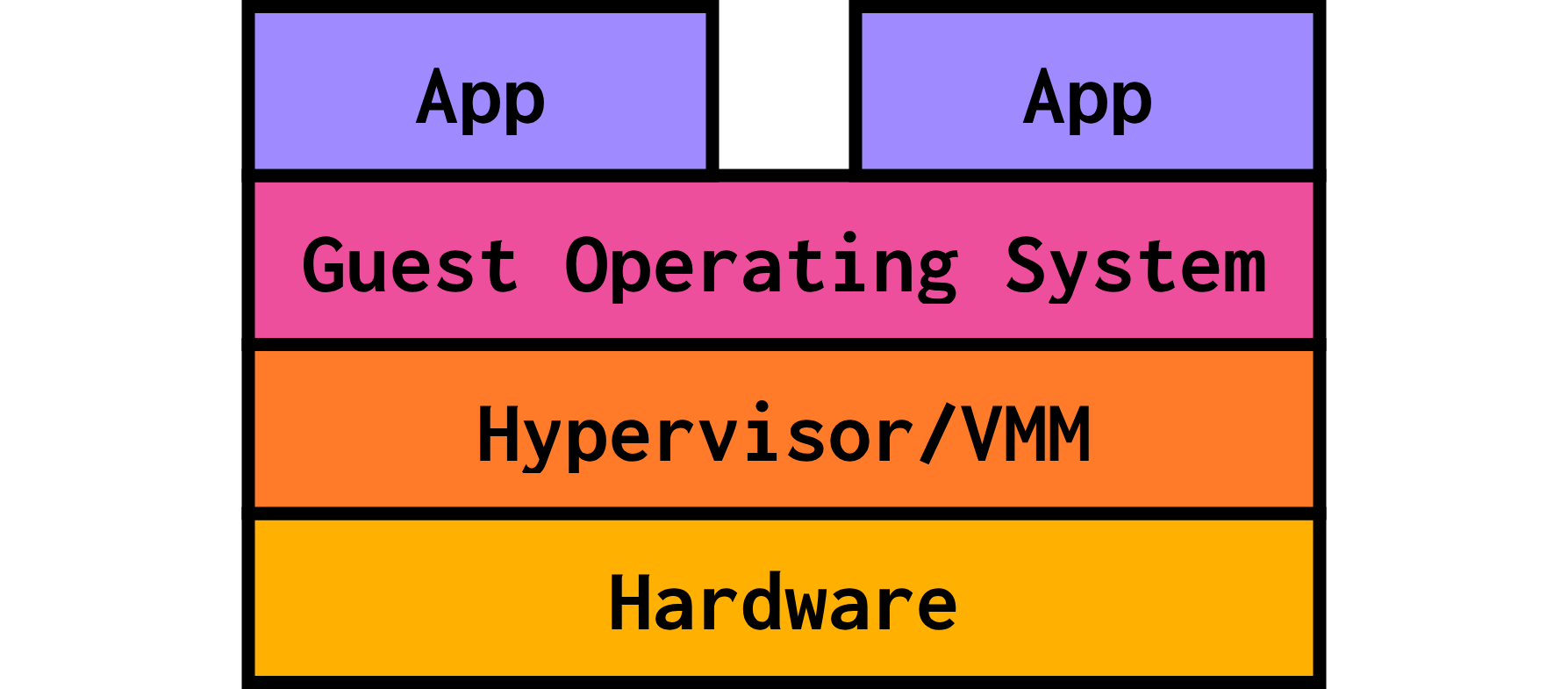

In virtual machine land, we add another layer to this cake: the hypervisor, that sits on top of hardware. You end up with four layers:

• The hardware, also referred to as the host, is your actual, physical machine.
• The hypervisor/VMM (Virtual Machine Monitor) is a software layer running on the host that emulates hardware for any virtual machines running.
• The guest is the code running not directly on your machine’s hardware, but “on top” of the hypervisor, which emulates the hardware for it. In the context of virtual machines, this is the guest operating system.
• The apps are whatever code the guest operating system has running on top of it. These might be pieces of software you couldn’t run on your native OS.

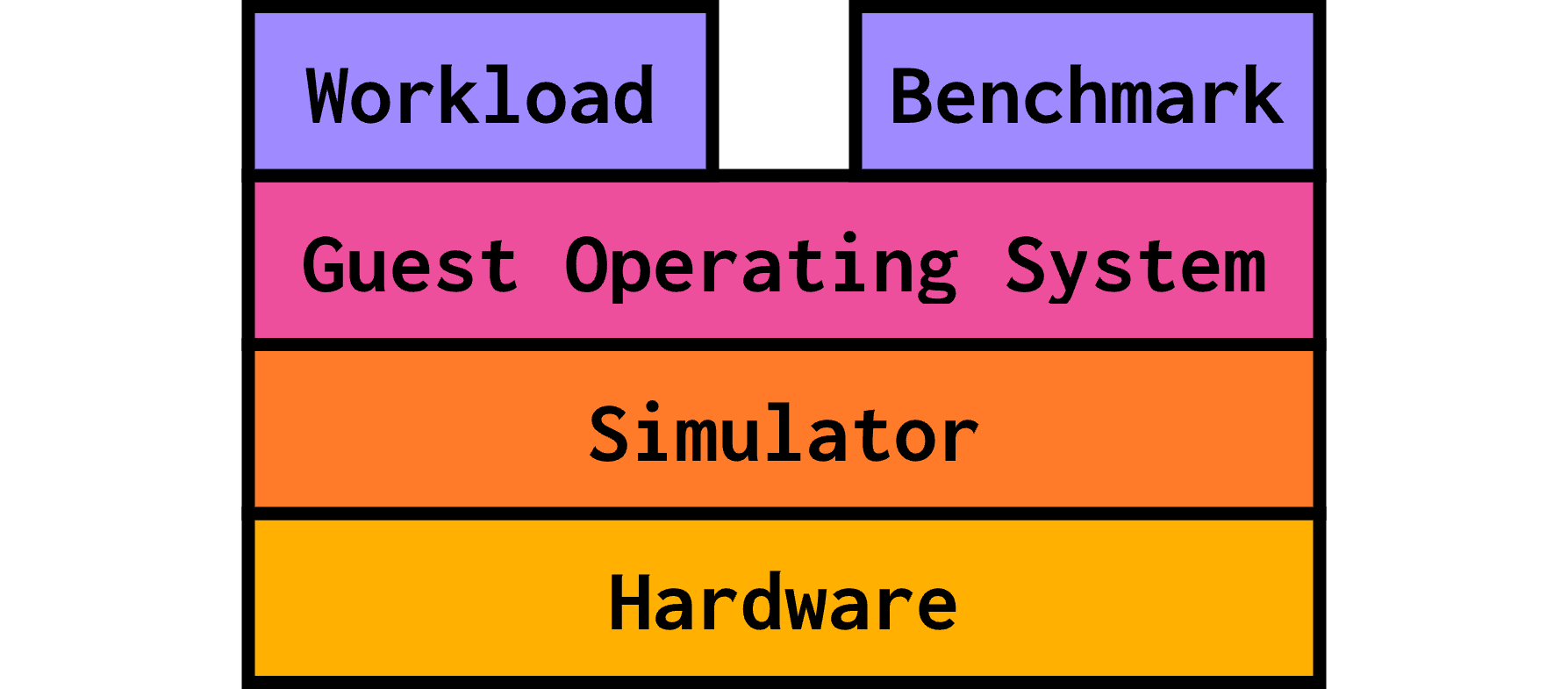

For simulators, this “layer cake” looks really similar, with a few names swapped around:

• The hardware/host is still your machine’s hardware.
• The hypervisor is replaced by the simulator, which runs directly on the host. The simulator exposes simulated hardware to the guest.
• The guest is the code that runs on this simulated hardware. The operating system running in-simulation is the guest operating system.
• The workload/benchmark is the code that the guest operating system (running on simulated hardware) is running. We use this code to assess something about our simulated system.

This means that the simulator’s code executes natively (on the host’s hardware), while the guest’s code runs on the simulator. The simulator’s code emulates the guest’s code!

As such, we have two different ways to discuss performance:

• The simulator’s performance, which refers to how quickly gem5 can simulate on the host machine.
  • This the amount of time that the simulation takes as we perceive it (AKA the wallclock time).
• The simulated performance is the time that the simulator predicts it takes for the guest code to run on the simulated system.
  • This amount of time will be less than the wallclock time: simulators take a while to simulate, but that doesn’t change the predicted performance of the simulated system!

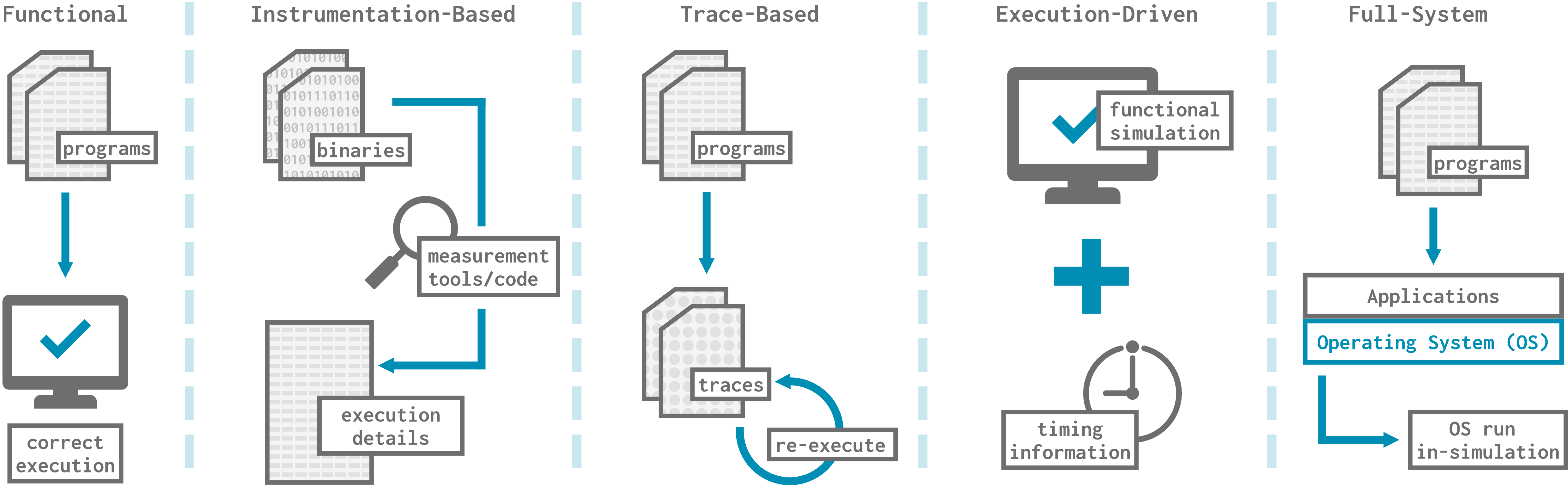

Types of simulation

There are quite a few types of simulation out there to fulfill different needs. Let’s focus on 5 common simulation types and what they’re used for. You don’t need to be an expert on these, but it’s helpful to know what they refer to.

Functional simulation

Functional simulation executes programs correctly, but usually provides no timing information. This makes it useful for validating the correctness of things like compilers or a new ISA, but not for assessing whether a configuration is faster or more efficient.

If you’re familiar, some examples of functional simulation include RISC-V Spike and QEMU.

Instrumentation-based simulation

Instrumentation-based simulation is often binary translation: recompiling a binary into either the same ISA or a different ISA and adding testing/debugging features like breakpoints and instruction traces. This type of simulation runs on actual, non-simulated hardware and uses callbacks. This is great for assessing performance bottlenecks, but it’s not very flexible to new ISAs and some things are opaque.

Some examples of instrumentation-based simulation are PIN and NVBit.

Trace-based simulation

Trace-based simulators generate traces of addresses and events, then re-execute those traces. This can be very fast, since you can reuse the traces and don’t have to do functional simulation every time. However, if the execution of a program depends on timing, then the trace becomes invalidated! Think about a multithreaded program where the time that individual threads take affects their interleaving and thus the overall execution. The same is true for programs that make calls to the operating system or use I/O. This simulation technique is great for specialized applications like cache hit/miss analysis or branch prediction, but it’s difficult to get the performance of an entire system.

An example of a trace-based simulator is ChampSim.

Execution-driven simulation

Execution-driven simulation is the combination of functional simulation and timing simulation. This makes it a highly accurate simulation technique capable of yielding performance data, but execution-driven simulators also tend to be slower than their functional counterparts.

Intel’s Simics simulator is an example of an execution-driven simulator.

Full-system simulation

Full-system simulation simulates every component of a system in high enough fidelity such that mostly unmodified apps can run entirely in-simulation. This is often “bare metal” simulation, meaning that it simulates booting the operating system on hardware. The operating system is run entirely in the simulator: it cannot be faked.

Being full-system is a separate property, different from being any of the other simulation types discussed above. Any of the kinds of simulators discussed above can also be full-system simulators, but it’s most common for functional simulators and execution-driven simulators to also be full-system.

For example, QEMU, a functional simulator we mentioned above, is also full-system.
